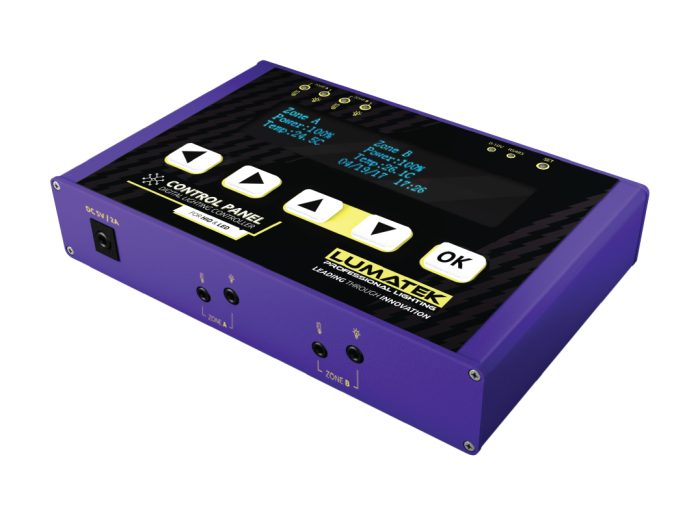

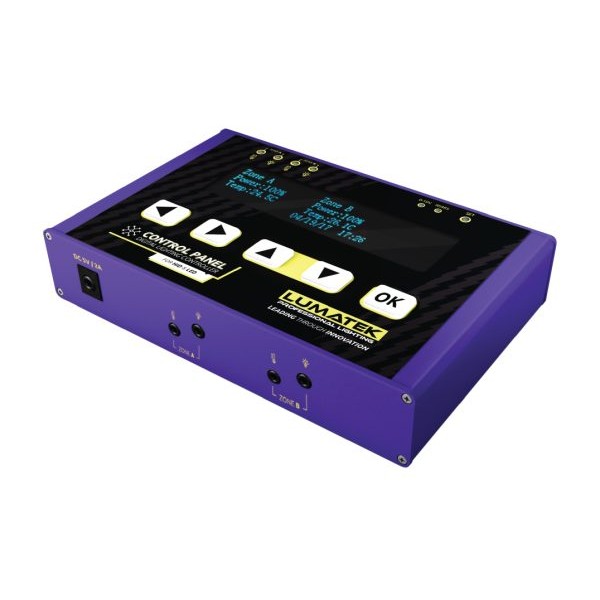

Lumatek Digital Panel PLUS 2.0

Lumatek Digital Panel PLUS 2.0

The Lumatek Digital Panel PLUS 2.0 delivers precise, efficient, and automated grow light control, accommodating both HID and LED systems to meet the needs of professional growers and hobbyists alike. With advanced safety features and a dual-channel design, it optimizes plant growth and energy use effortlessly.

Specifications

• Product Code: LUMM0019
• Power Input: Adaptor 100-240V AC, 50/60Hz – DC 5V/2A
• Ballast Compatibility: 315W, 600W, 630W, 1000W HID ballasts
• LED Driver Compatibility: All Lumatek controllable LED drivers
• Power Dimming Range: 10% – 115%
• Power Regulation Accuracy: ±1%
• Safety Dimming Range: 0°C to 40°C
• Safety Switching Range: 10°C to 50°C
• Sunrise & Sunset Duration: 0-30 minutes
• Max Ballasts/Drivers Per Zone: 200 (RS485) HID or 50 (0-10V) LED
• Total Supported Devices: Up to 400 ballasts or 100 LED drivers
• Dimensions: 125mm x 80mm x 25mm

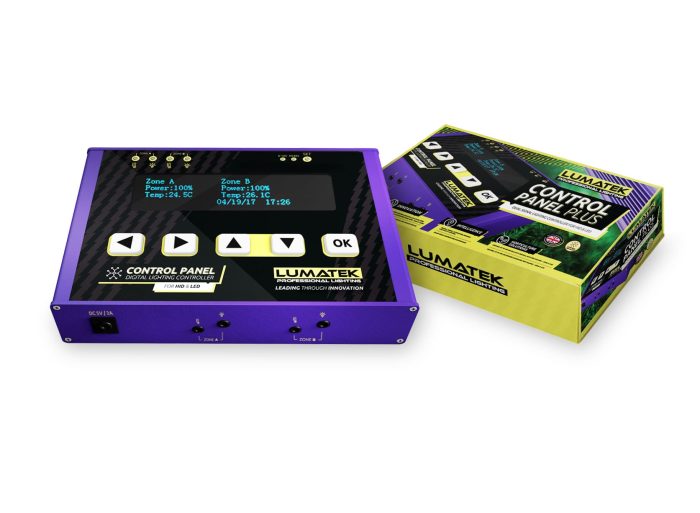

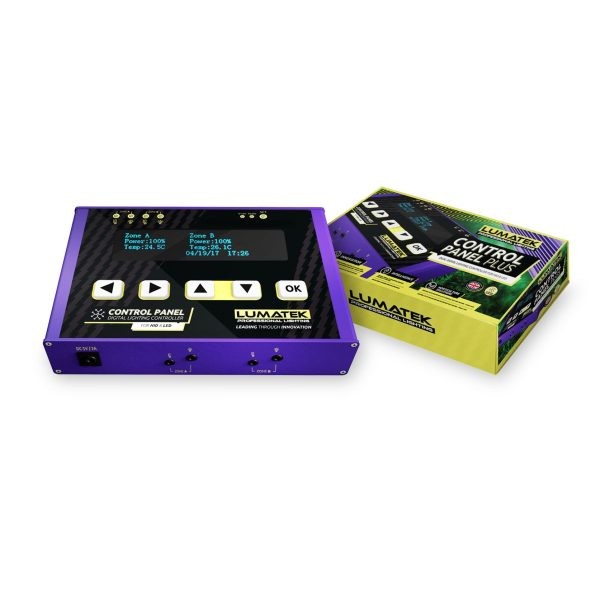

• Items Included:

• 1 x Lumatek Digital Panel PLUS 2.0
• 1 x Power adaptor and cable
• 2 x HID control link cable (5m)
• 2 x LED control link cable
• 2 x Temperature sensor (5m cable)

Features of Lumatek Digital Panel PLUS 2.0

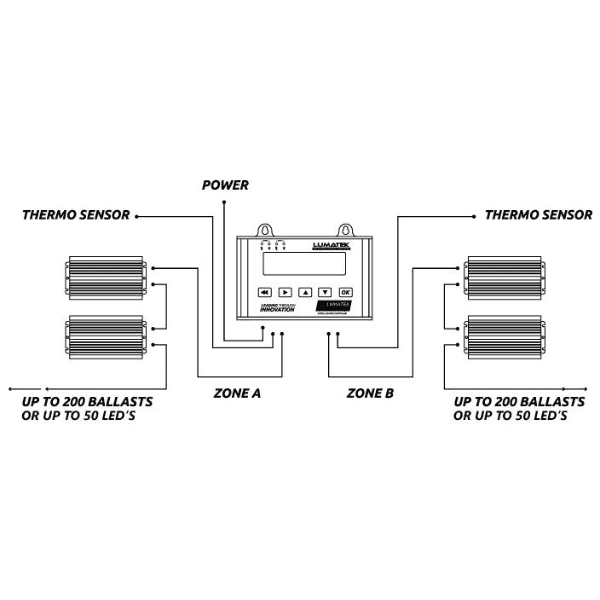

• Comprehensive Control: Supports up to 400 HID ballasts or 100 LED drivers, divided into two channels (Zone A & Zone B).
• 24-Hour Scheduling: Easily program light schedules, including light-on/off timing.
• Light Intensity Automation: Offers precise dimming control in 1% increments.
• Temperature Management: Automatic dimming or shut-off in case of high temperatures for enhanced safety.
• Sunrise/Sunset Simulation: Mimics natural light cycles to reduce plant stress.
• Plug-and-Play Setup: Includes all necessary cables for seamless integration into grow environments.

Applications

• Large-Scale Greenhouses: Manage multiple grow zones with separate light cycles.
• Indoor Grow Setups: Ideal for optimizing light schedules in tents or small spaces.
• Mixed-Light Cultivation: Suitable for blending LED and HID lighting systems.
• Horticultural Research: Perfect for labs requiring accurate light intensity and timing.

FAQ

How many lights can this panel control?
Up to 400 HID ballasts or 100 LED drivers across two channels.

Does it include cables for connection?
Yes, all necessary connection cables, including temperature sensors and control links, are provided.

Can it simulate natural light cycles?
Yes, the panel supports sunrise and sunset simulations to help reduce plant stress.

Is it compatible with non-Lumatek devices?
While designed for Lumatek systems, it may work with other brands; check your device specifications for compatibility.
